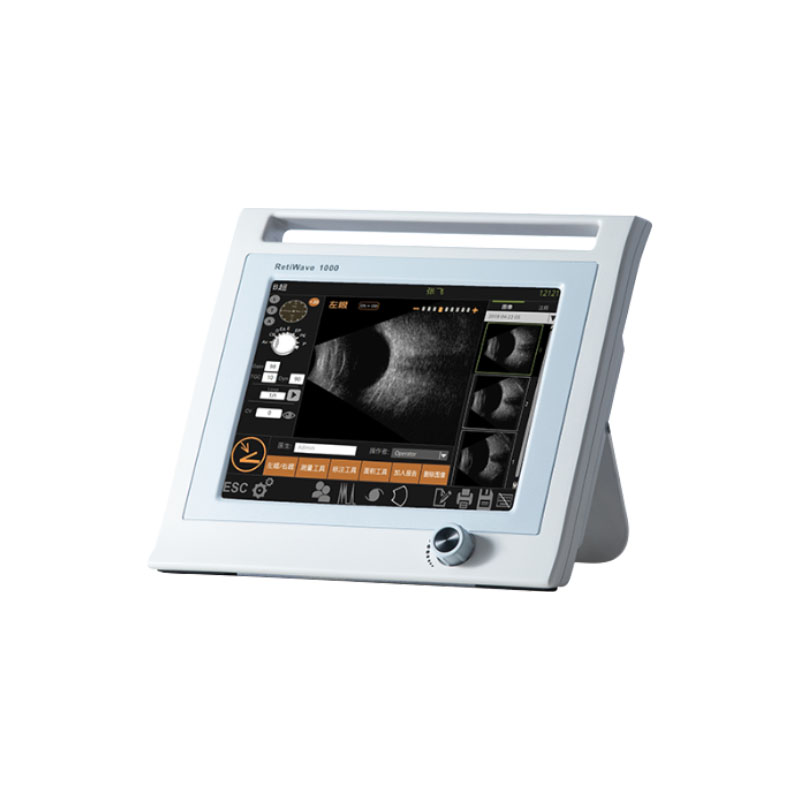

RetiWave1000 Ophthalmic AB Scan
Features:
1. A super function is the measurement of eye axis length.

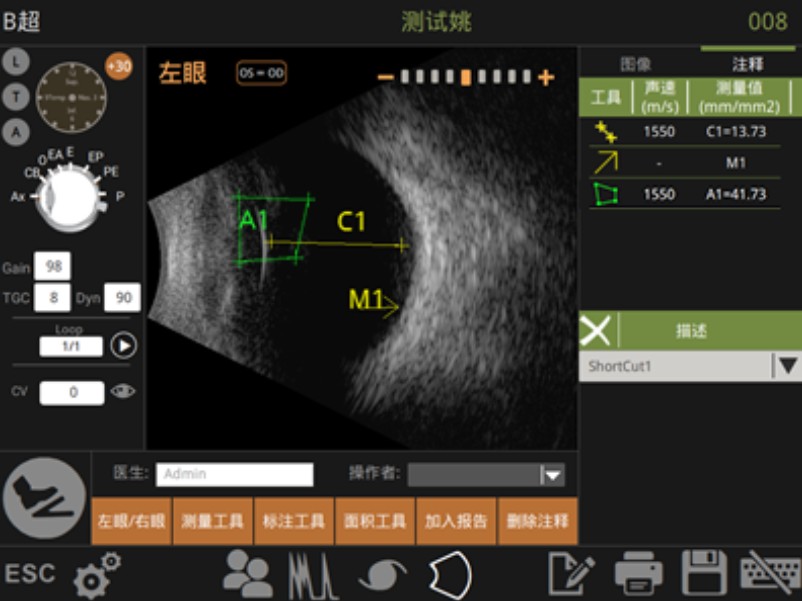

2. B ultrasonic function is fan scan.

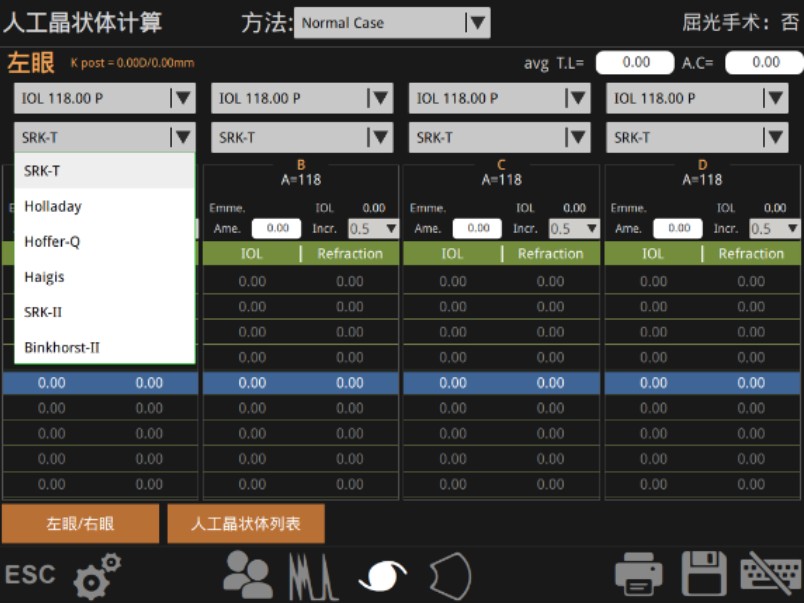

3. IOL calculation function USES 6 formulas to calculate the artificial crystal.
Specification

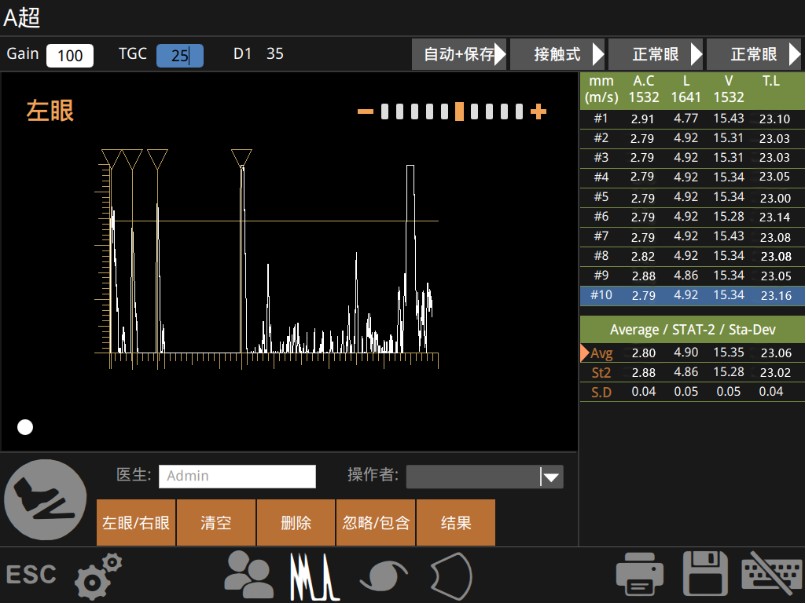

A Scan biometry
Probe frequency10MHz
Measuring modecontact
Measuring rangeOver 5mm-40mm
Measuring error≤±0.05mm
Measuring typeLength of optic axis , automatic calculation , result analysis auto ,
Image freezingauto+preservable, manual
Intraocular lens implantation (IOL)formulaSRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS
Gain20-110dB
Time gain adjustment0-30dB

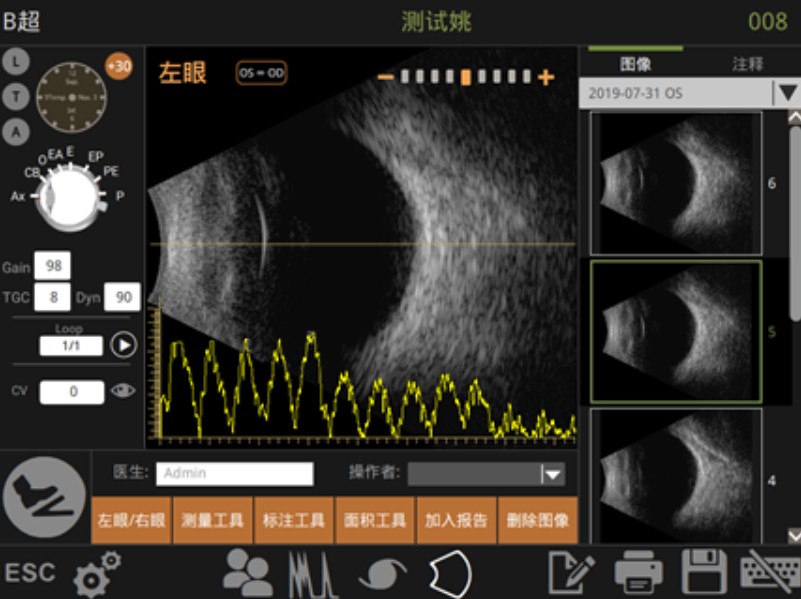

B Scan patterns
Probe frequency10MHz
Probing depth≥50mm
Axial Resolution≤0.2mm
Lateral resolution≤0.3mm
Gain adjustment20-110dB
Time gain adjustment0-30dB
Operation modeEyecup, gel, aqueous capsule
Post-processing measuring toolsArea, length, mark and annotation
Review100 images available
Others
Size340mm*320mm*115mm
weight10kg
Power supply100-240V 50/60Hz
