AB Scan SW-1000 Ophthalmic Ultrasound

AB Scan SW-1000 Ophthalmic Ultrasound

Description

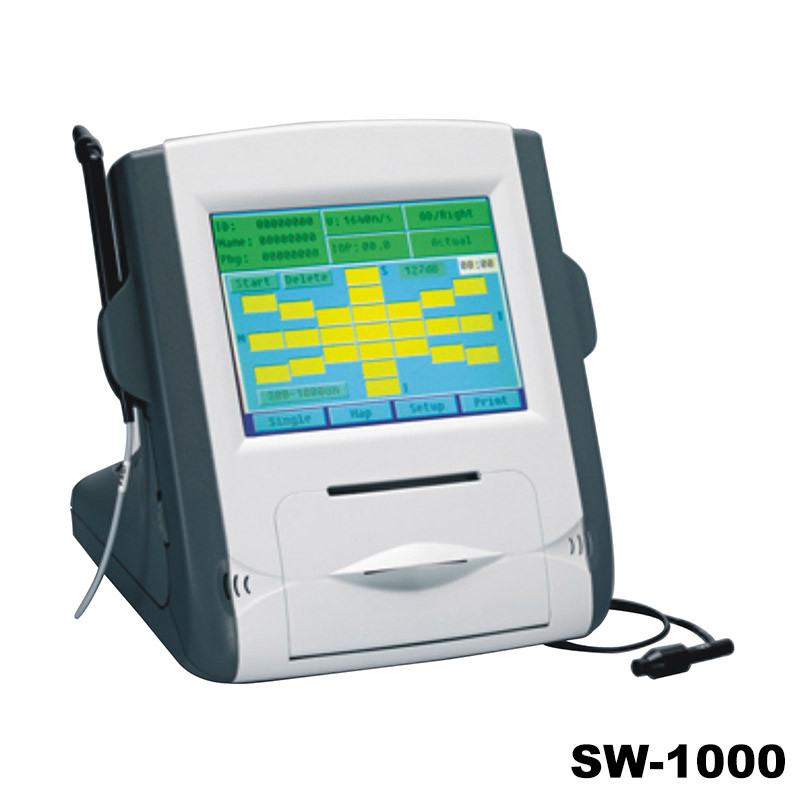

SW1000

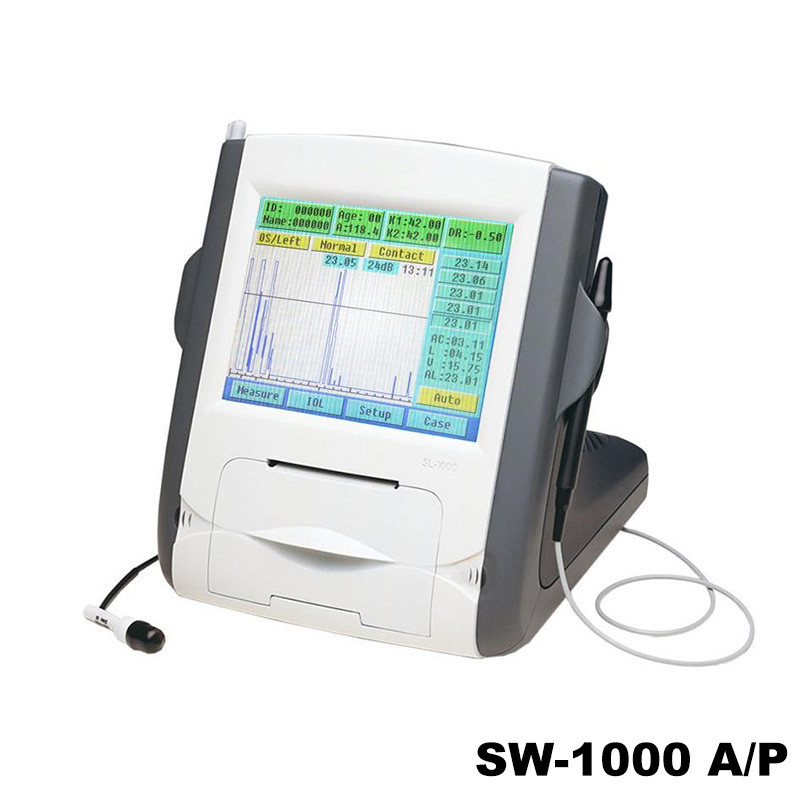

SW1000A&P

SW1000P

A Scan SW-1000A
A scan probe10Mhz import small size probe,built-in luminotron
Measuring range15mm-40mm
Measurment precision±0.5mm ; with macula lutea trace function
MeasurmentAnterior chamber depth , lens thickness , vitreous body length , total length and average
Method of measurmentimmersion and contact
Eye modePhakic / Aphakic / Dense / various IOL
IOL formulaSRK-II , SRK-T , BINKHORST-II , HOLLADAY , HOFFER-Q , HAIGIS
Storage10 cases , 5 readings each case
OutputA scan waveform and IOL calculation sheet

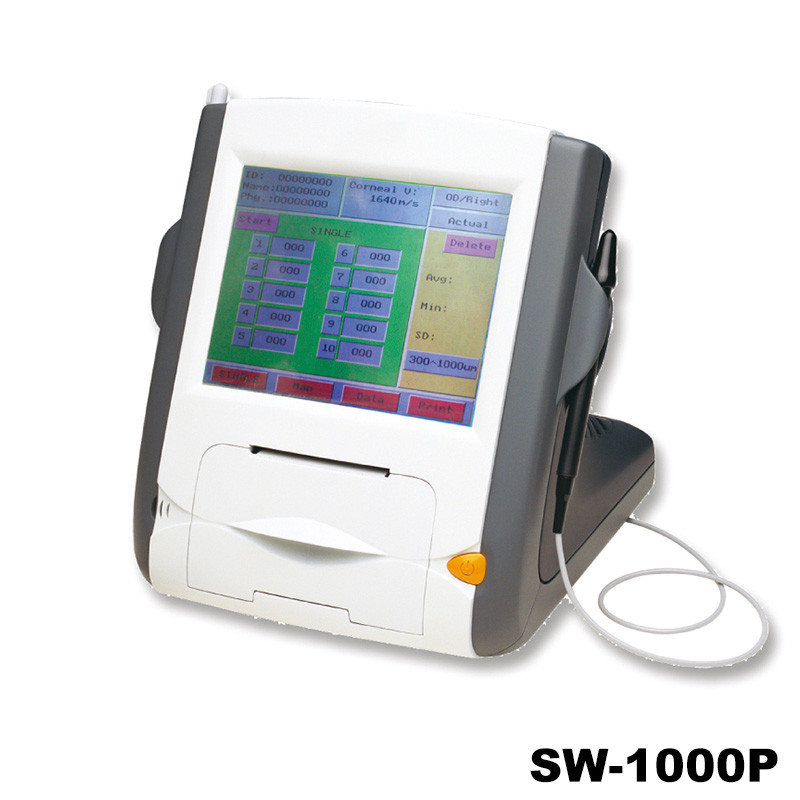

Pachymeter SW-1000P
P scan probe20Mhz , angle of 45 degrees makes easier operation
Resolution5um
Measuring range150um~1500um
DisplaySINGLE mode and MAP mode
can display ultrasound waveform when measuring
Each group is the average of 20 measurments
Switch between IOP measured value and actual value
Can input name , ID and operator's name
